RM 27,000.00

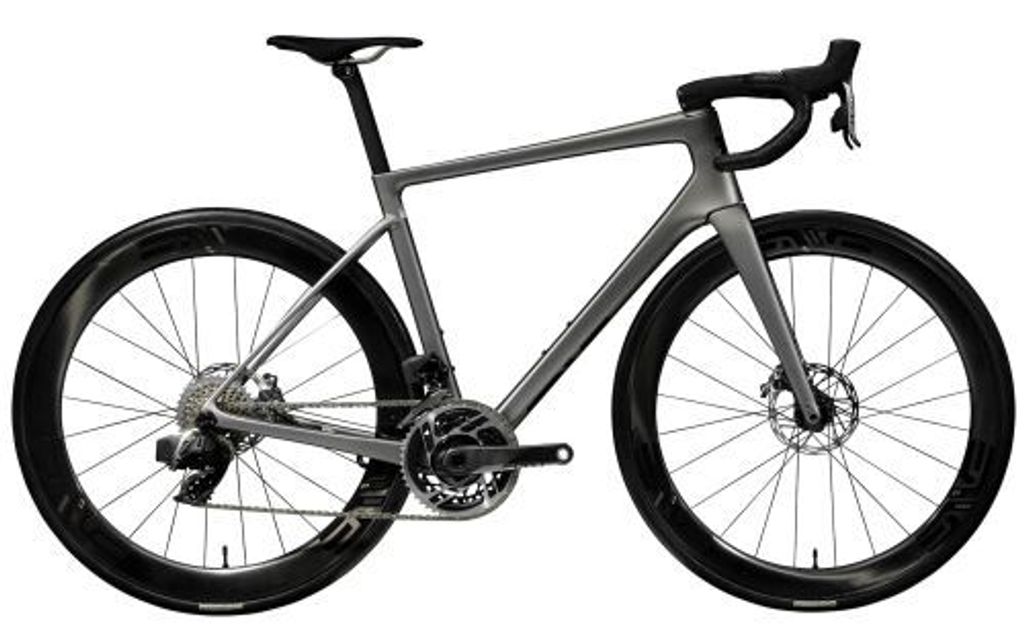

ENVE MELEE FRAMESET Ratings: 0 - 0 votes
- +
icon-bag Add to Cart

The Melee chassis is the canvas upon which you can create your dream bike. Choose your favorite SES or Foundation wheelset, SES AR Handlebar width, Integrated Aero Stem length, and Aero Seatpost setback to achieve your perfect setup.

Developed in CFD and the wind tunnel, the Melee features refined tube shapes that have been tuned to complement our own SES™ rim shapes and deliver aerodynamic performance that is Real-World Fast™. Additional features such as the Integrated Front-End add to the Melee’s slippery design.

Frame Material    ENVE M.O.D Carbon

Fork Material    ENVE M.O.D Carbon

Target Application    Road Race/Performance

Fork Rake    55, 51, 47, 43, 39

Frame Size/Fork Rake    47cm/55, 50cm/51, 52cm/47, 54cm/47,

56cm/43, 58cm/43, 60cm/39

Frame Weight    850g +/- 2% (Size 56, Painted, No Hardware)

Headset    ENVE Integrated IS52/IS52 Internal Drop-In

Headset Bearing    1.5″ IS52 Upper and Lower

Seat Post Diameter    ENVE Aero

BB Type    T47 Inboard Bearing

Brake Mount    Flat Mount

Front Axle    12×100 (Total Length: 122, TP:1.5, TL:15)

Rear Axle    12×142 (Total Length: 168, TP:1.0, TL:14)

Minimum Tire Size    25c

Optimal Tire Size    27c-32c

Maximum Listed Tire Clearance    35c

Frame Routing    Internal
